HOME >> Products >> Polish machine

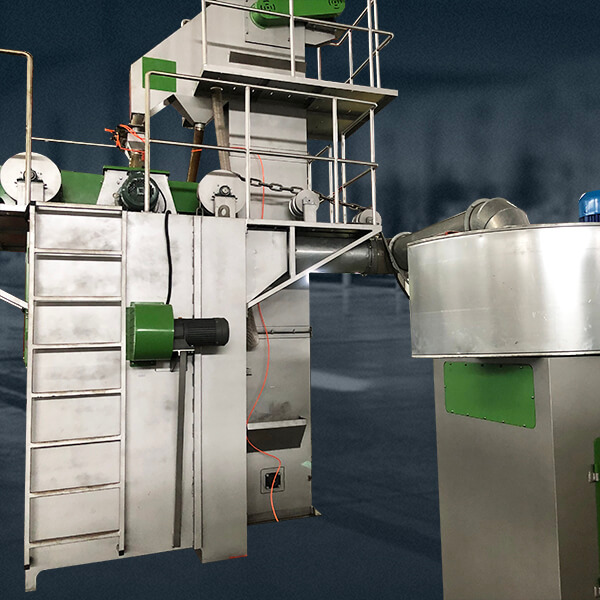

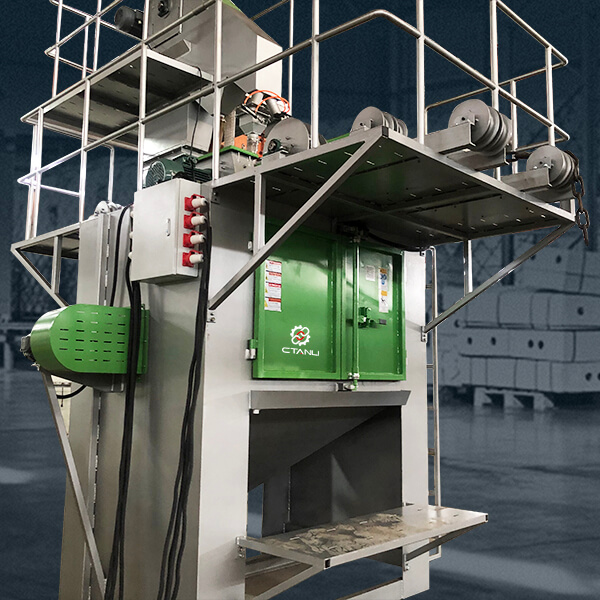

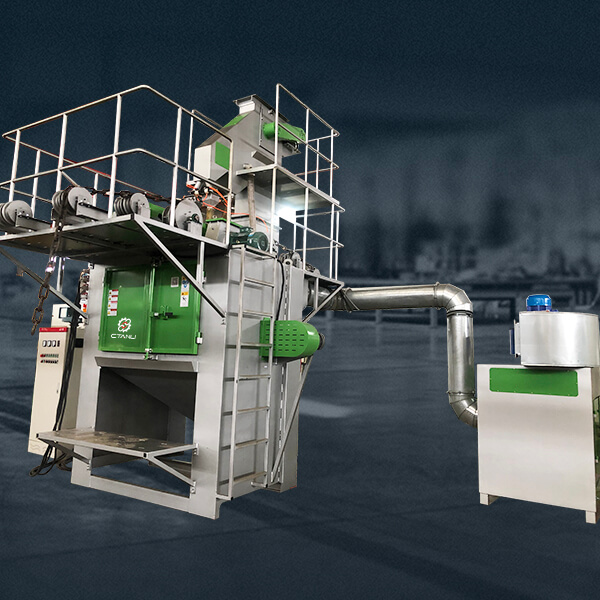

| DLP-6B Equipment technical specifications | ||
| 1 | Product working on | ψ5~22mm Lifting chain |
| 2 | Operation mode | Full-Automatic & ccontinuous |
| 3 | Multasking | MAX six |
| 4 | Processing speed | 0.5~3.0m/ min (Frequency) |
| 5 | The Product conveyor motor | 1.5kw |
| 6 | Shot blasting part : Speed Diameter of impeller Blast capacity Blasting power | 2930r/ min ψ400mm 190kg/min*3sets 7.5kw *2sets |
| 7 | How to Tum the workpiece. | Swing around |
| 8 | Throwing sand pellets. Sand pellet diamete First input | 0.2 ~ 1.5mm 600kg |
| 9 | Elevator Elevate quantity Pitch Lifing motor | 3ot/h 200 mm 3.7kw |
| 10 | Separation quantity | 30t/th |
| 11 | Dust collector Dust elimination method Dust air volume Dust collector Dust collection efficiency Dust emission concentration The air volume The air pressure | Type of cartridge 4012 ~ 7419m³/h 5.5kw 99.9% <96mmg 1m³/min 0.5 ~ 0.8mpa |
| 12 | Equipment noise | <93 db (JB /T835596) |
| 13 | The total installed capacity | 30kw |
| 14 | Size (H*W*L) | 4000mmx3000mmx5300mm |
| 15 | Total weight | About 5500kg |
| Note:The above date for reference only ,please prevail in kind. | ||
DLP-A
DLP-6B
