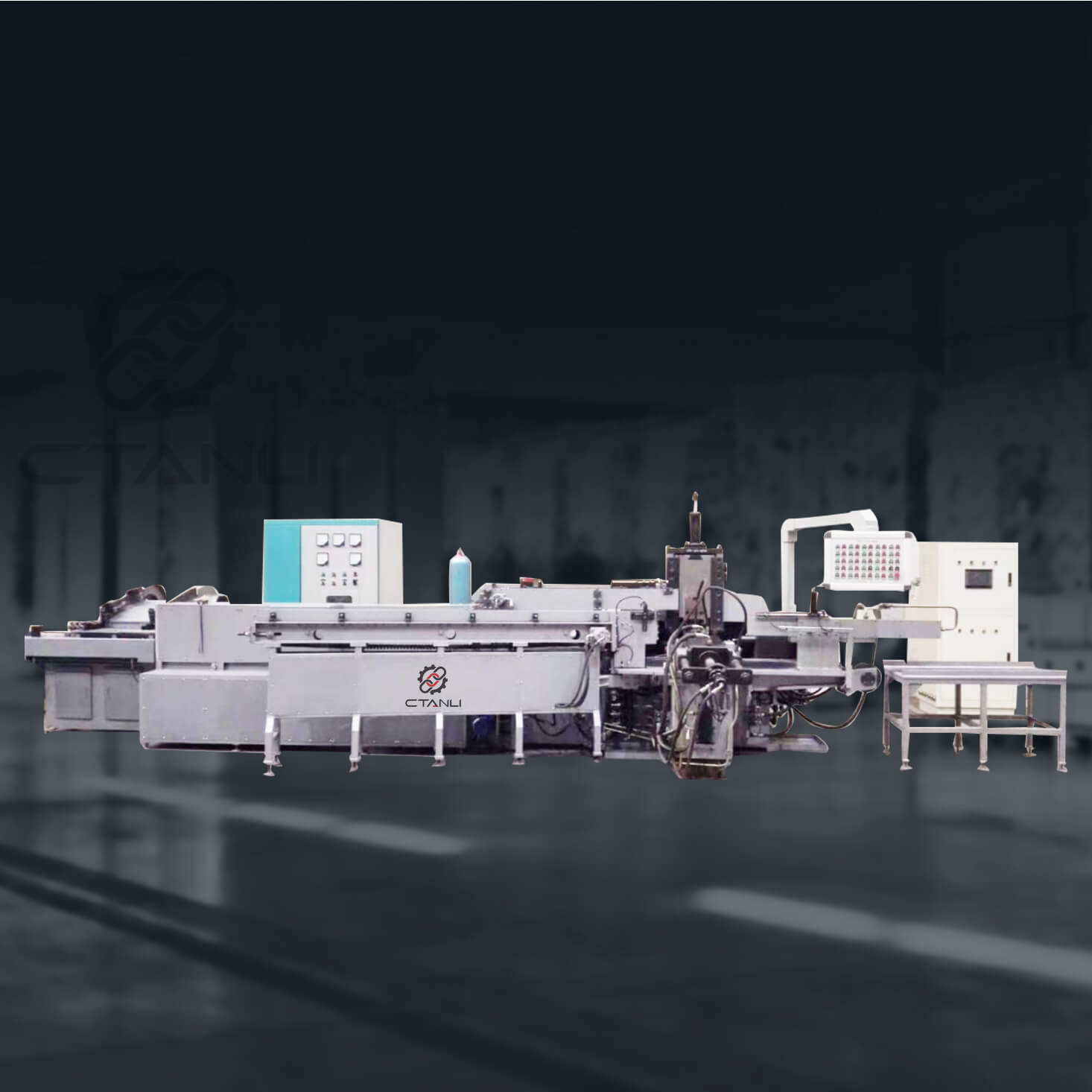

DL-JZB60 chain bending machine

HOT stage bending type

DL-JZB60 the hot stage bendingIt is composed of castings, forgings and structural parts,It includes an automatic feeding lifting device,container,Manipulator feed system,500KW Intermediate frequency heating power supply,Induction heater,transport machine and bedning machine .

Product Parameters:

item	data	unit
Bending size	Φ38-Φ48	MM
Max working pressure	25	MPa
Number of cylinders	6	pcs
Bar heating temperature	550-850	degree
Medium frequency power	500	KW
Automatic lifting of bar	Hydraulic motor
Bar feed automatically	Hydraulic motor manipulator
Work people	1-2	people
power	30	KW
Solenoid valve size	Φ16	MM
Electric control system	PLC+Touch screen + output actuator
