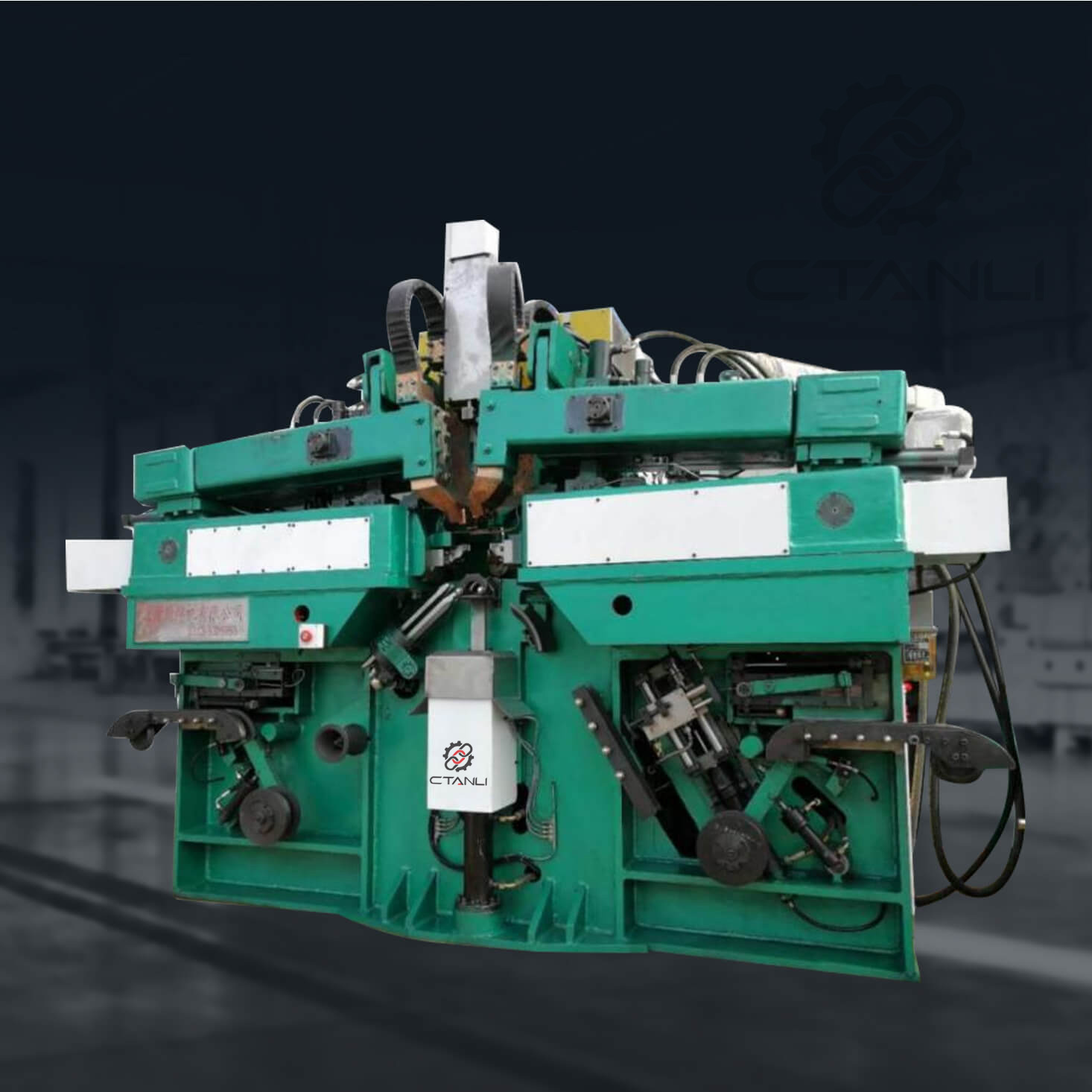

DL-600D Automatic chain welding machine

The main structure same germany MRP machine

Complete sets of equipment：machine、Hydraulic pump station（300LStainless steel servo pump station+630Lpump station）、Electric control cabinet

Product Parameters:

Work size：Φ38-φ48
no	item	data
Make chain range	Make chain size range	Φ38X137-φ48X152 GB/T1 2718-2009
The efficiency of	Rate of production	around2-1 link/min
The power supply	The operating voltage	380V/3 phase 50HZ
	The control voltage	220V AC/24V DC
The installed capacity	Pump motor power+control	Around 55KW
	Welding transformer	600KVA
Pneumatic system	Rated system pressure	12MPa
	The air consumption	Around 50L/Min
The hydraulic system	Capacity of hydraulic tank	Around 630L
	Hydraulic oil	46#
water	Puin water	Less than 15℃
consumption	Machine cooling water consumption	90 L/Min
size	machine（L * W * H）MM	L6500 W2600 H3500
	control（L * W * H）MM	L1200 W750 H2000
weight	MACHINE total weight	38000kg
Using the environment	The temperature is greater than 10℃ and the noise is less than 84 db
