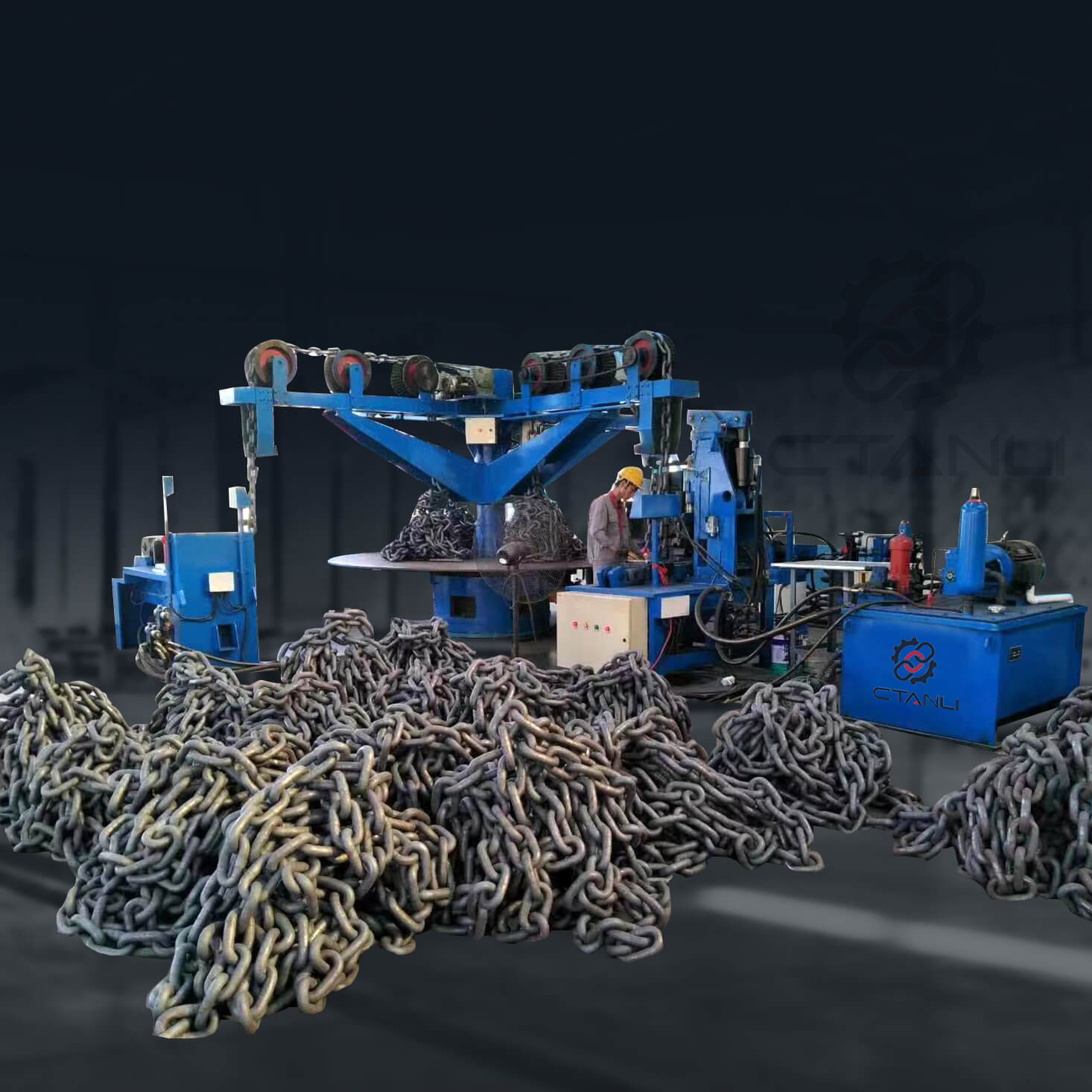

I. Rotating welding unit (DLM-400) :

The unit is suitable for φ22-φ34 Marine anchor chain, mainly divided into: chain rotation machine, medium frequency heating machine, automatic feed chain braiding machine, welding machine, to puncture machine, press gear machine five parts.

1, chain rotation machine:

Adopt hydraulic transmission, the maximum height of the four arms is 2.5m, which can realize the whole chain moving up and down and stacking, the maximum load-bearing is 6T, and can be positioned at any Angle.

2. Medium frequency heating machine, automatic feeding and chain braiding machine:

 Adopt hydraulic transmission, mechanical arm automatic feeding, medium frequency induction heating, automatic transmission bar material knitting molding, automatic sensor positioning, medium frequency heating power 250KW, uniform bar heating, the maximum bending bar material Φ34mm.

3, welding machine:

Adopt full hydraulic power, vertical fixture, double-sided guide, transformer rear, sensor sampling, servo feeding system, PLC program control, maximum welding diameter Φ34mm, total weight 6.7t.

4. Puncturing machine:

Full hydraulic transmission, vertical prickling mode, can realize both sides of the bayonet synchronization and division prickling, obvious effect, PLC program control, the total weight of 1.8t.

5. Pressing machine:

This machine is mainly used for stalling anchor chain. After chain link butt welding and pruning is completed, the stalling is completed in hot state and controlled by PLC program. The total weight of the equipment is 2.8t.
