DELE ELECTRICAL （HANGZHOU）CO.,LTD

1.

Using range MM

φ36-φ70 for ship

φ38-φ60 for mine

2.

Rated working pressure of hydraulic system

15MPa

3.

Maximum working pressure

25MPa

4.

Diameter of main oil cylinder of chain braiding machine

Φ280X350mm

5.

Diameter of auxiliary cylinder of chain braiding machine

Φ180X200X2mm

6.

Diameter of drive cylinder for chain braided machine core die

Φ70X120mm

7.

Chain braiding machine limit cylinder diameter

Φ50X80mm

8.

The chain braiding machine locates the diameter of the oil cylinder

Φ125X250mm

9.

Diameter of lifting cylinder

Φ80X200mm

10.

Temperature of bar heating

550-650℃

11.

Medium frequency power

500 (IGBT)KW

12.

Inductor length

2.4m

13.

Bars are automatically fed in

Hydraulic motor manipulator

14.

Tank volume

600L

15.

Motor power

22KW

16.

Solenoid valve size

Φ16MM

17.

Electric control system

PLC (OMRON)

18.

Cooling way

water

19.

Cooling water consumption

120L/Min

20.

people

1per

Complete weight of knitting machine (including main machine, pipeline, hydraulic pump station, electric control cabinet, feeder, feeder, medium frequency furnace) weighs about 12300 kg。

1.

Rated secondary voltage

V2=10.47V     7.85V   2G

2.

The welding power

800KVA

3.

Load duration

50%

4.

Secondary voltage regulation

Silicon controlled phase-shifting stepless voltage regulation

5.

Maximum welding diameter

Φ70mm

6.

Minimum welding diameter

Φ36mm

7.

Feed cylinder (inside diameter)

Φ260mm

8.

Clamp cylinder (inside diameter)

Φ180mm

9.

Maximum jacking force

400KN

10.

Maximum clamping force

590KN

11.

Rated feed pressure

10MPa

12.

Rated clamping pressure

20MPa

13.

MOTOR POWER

15+11KW

14.

Cooling water flow

80L/min

15.

The work efficiency

2-3环（Φ48）min

      The weight of welding machine (including main machine, pipeline, hydraulic pump station, electric control cabinet, transformer, secondary copper belt, etc.) is about 12100 kg.

1.

Minimum removal link diameter

Φ36mm

2.

Maximum removal link diameter

Φ70mm

3.

To stab the direction

vertical

4.

To puncture cylinder diameter

Φ160X250X2mm

5.

The tool holder pushes the cylinder

Φ80X200mm

6.

Clamp cylinder diameter

Φ150X250mm

7.

Number of cylinders

4只

8.

Rated working pressure of hydraulic system

15MPa

9.

Motor power

18.5KW

10.

Tank volume

600L

11.

Cooling way

Water cooled

12.

Cooling water consumption

90L/MIN

13.

Integral lubrication mode

Centralized lubrication

      The weight of the complete set of puncture removing machine (including host machine, pipeline, hydraulic pump station, electric control cabinet, puncture removing tool, etc.) is about 8200kg

1.

Maximum working pressure

15MPa

2.

Drive power

hydraulic

3.

Pallet bearing capacity

8000kg

4.

The tray diameter

4600mm

5.

Total height

3300mm

6.

Arm length

7200mm

7.

Motor power

18.5kw

8.

Electrical control

PLC (OMRON )

9.

Proximity switch limit, power indication

10.

Counter indication, slip ring, brush on

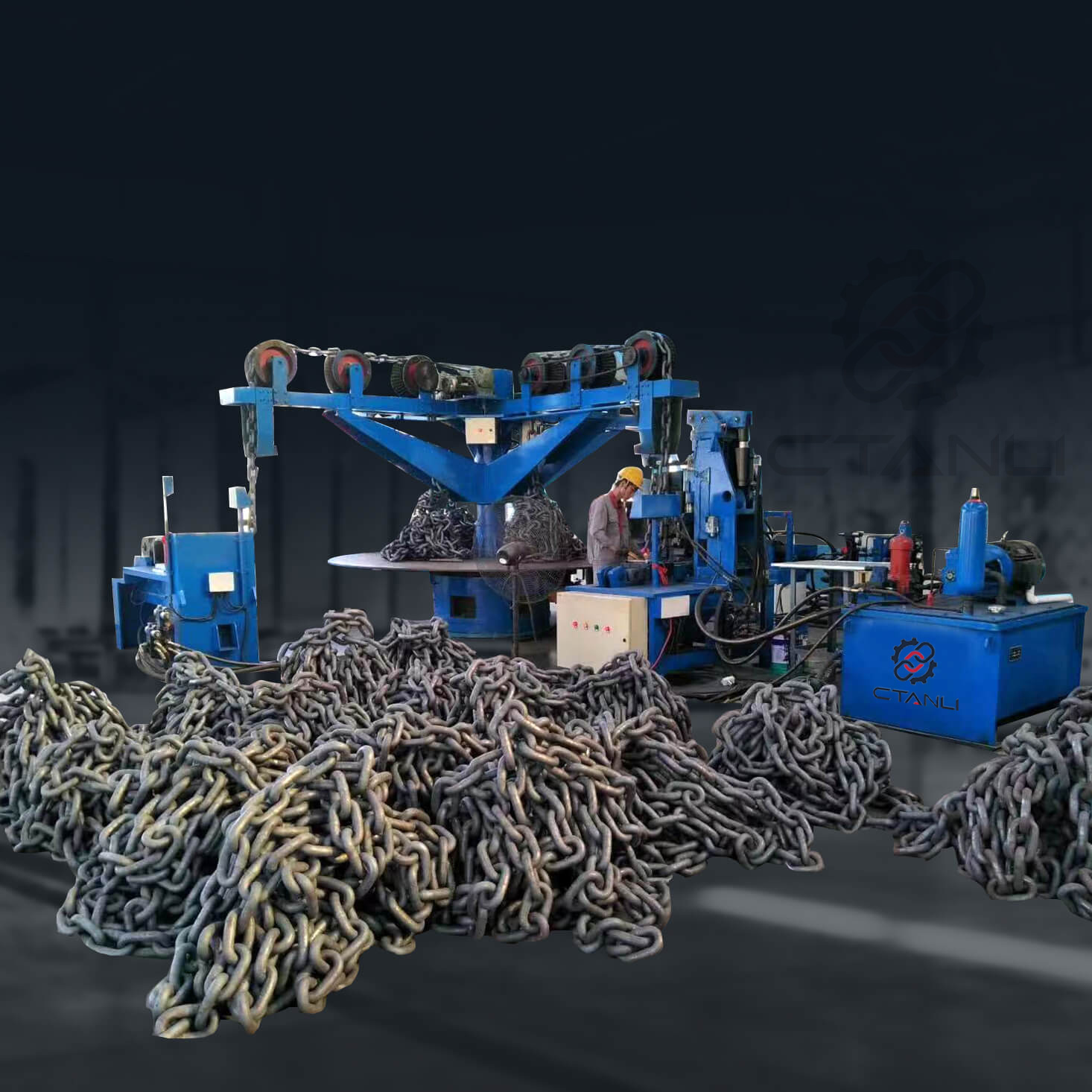

     Weight of complete set of rotary chain conveyor (including host machine, pipeline, hydraulic pump station, electronic control system, etc.)About 11,300 kilograms.

no

name

details

1.

Main cylinder diameter

Φ320X300

2.

Rated extrusion pressure

1600KN

3.

The total weight

7000Kg
