HOME >> Products >> Galvanized machine
| Description | Qty. ( sets ) | |

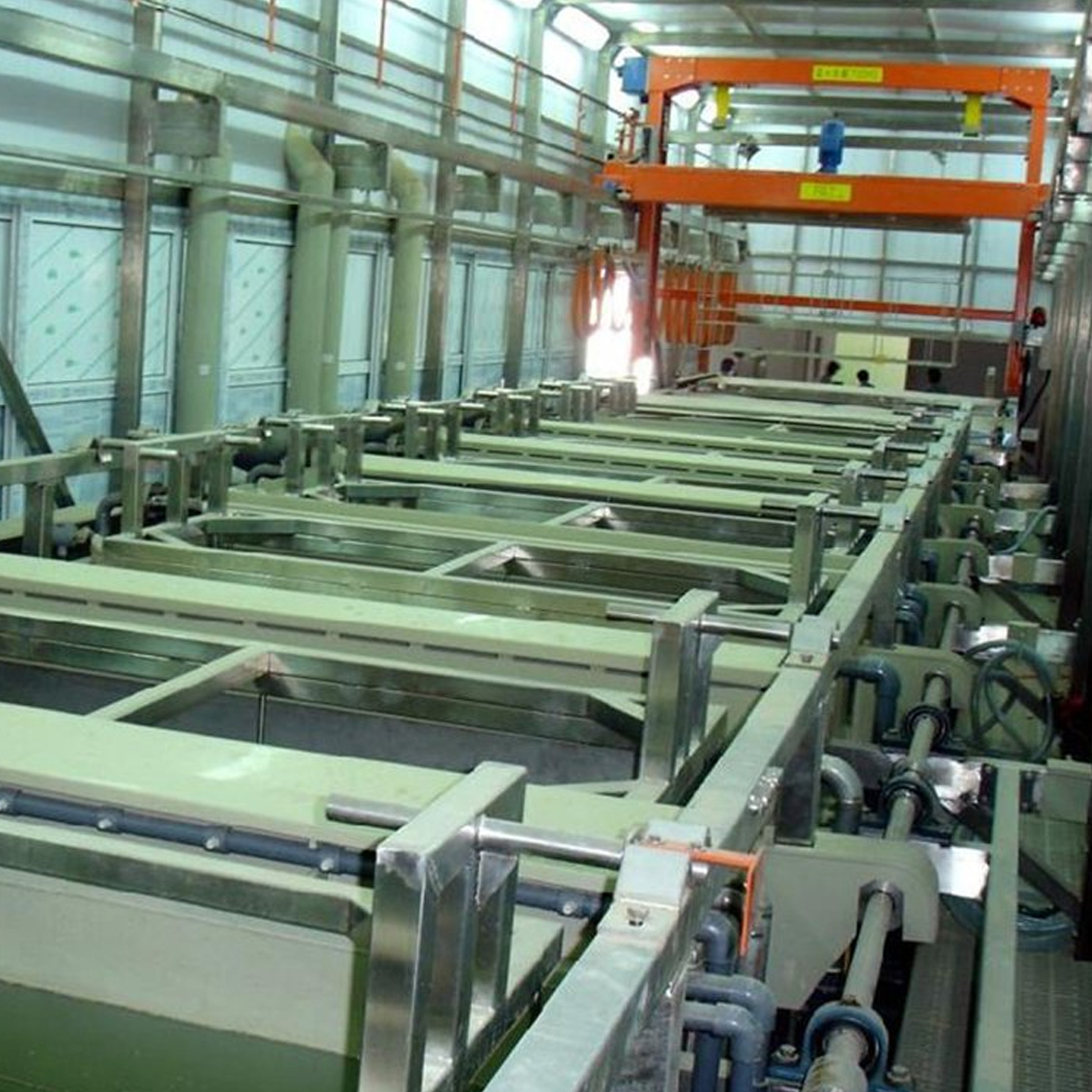

| Loading/pickling degreasing: Slot inner diameter 2400×1400×1100 1: It is made of 15mm A grade PP board, with PP V-shaped seat, 2: The tank body is reinforced with 40×80×3mm square steel for 2 times 3: Equipped with 2.2kw motor/70 reducer 4: Equipped with 1 drum (bucket size 1200 long × gear diameter outer diameter 550mm, hole 4mm, door opening outside) 5: 1 set of oil-water separation tank 6: The feeding station is equipped with a motor reducer | 1 | |
| Two-phase countercurrent rinsing: Slot inner diameter 1600×1400×1100 1: It is made of 15mm A grade PP board, with PP V seat 2: The tank body is reinforced with 40×80×3mm square steel for 2 times 3: Equipped with 2.2kw motor/70 reducer | 1 | |

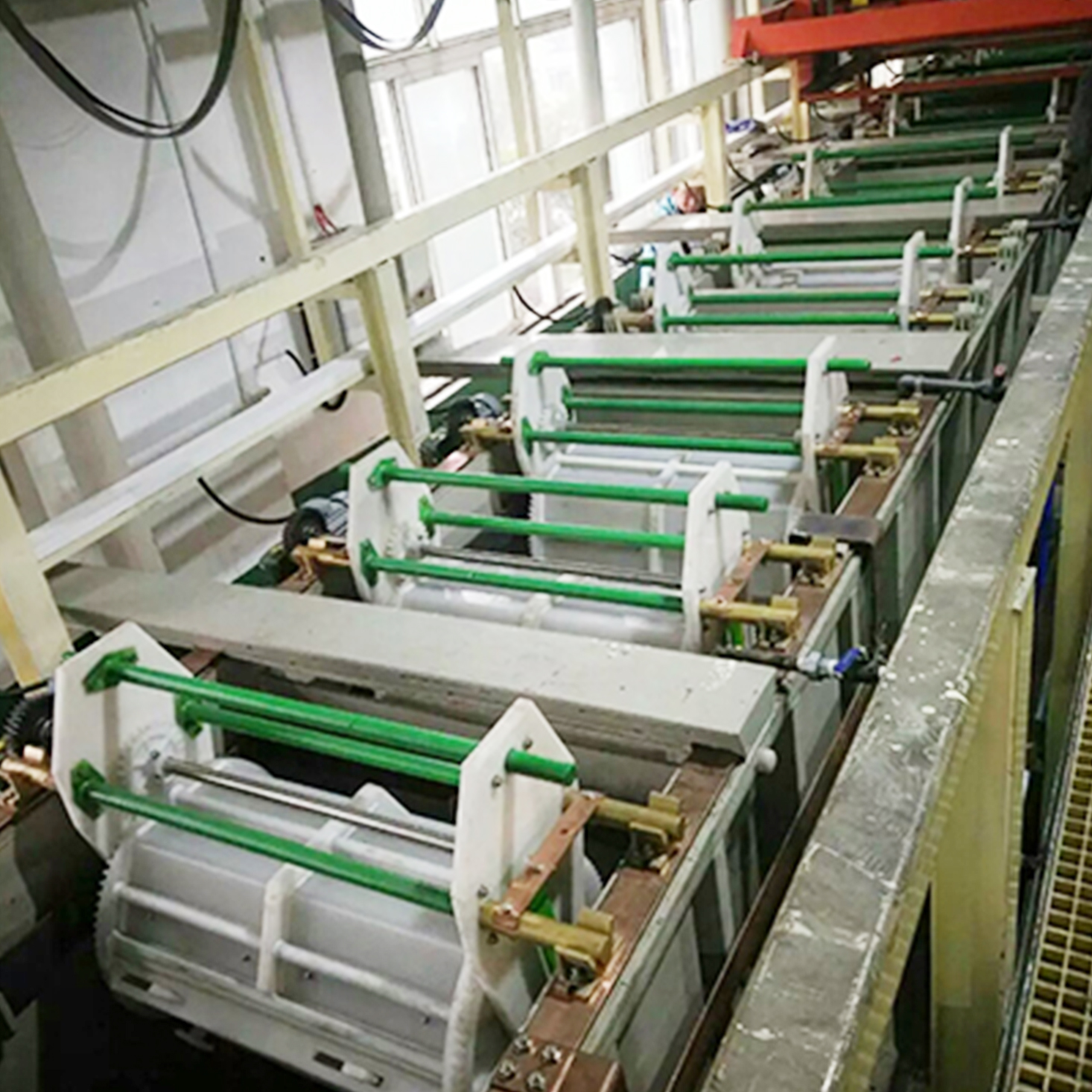

| Electroplating 3 stations: Slot inner diameter 2700×1400×1100 1: It is made of 15mm A grade PP board, with PP V seat 2: The tank body is reinforced with 40×80×3mm square steel for 2 times 3: Equipped with 2.2kw motor/70 reducer 4: with copper tube and copper bar 5: Equipped with 3 rollers (barrel size 1200 length × gear diameter outer diameter 550mm, hole 4mm, door opening outside) | 2 | |
| Two-phase countercurrent rinsing: Slot inner diameter 1600×1400×1100 1: It is made of 15mm A grade PP board, with PP V seat 2: The tank body is reinforced with 40×80×3mm square steel for 2 times 3: Equipped with 2.2kw motor/70 reducer | 1 | |
| Light emission/washing/passivation: Slot inner diameter 2400×1400×1100 1: It is made of 15mm A grade PP board, with PP V seat 2: The tank body is reinforced with 40×80×3mm square steel for 2 times 3: Equipped with 2.2kw motor/70 reducer | 1 | |
| Passivation/two-unit countercurrent rinsing/cutting: Slot inner diameter 2400×1400×1100 1: It is made of 15mm A grade PP board, with PP V seat 2: The tank body is reinforced with 40×80×3mm square steel for 2 times 3: Equipped with 2.2kw motor/70 reducer | 1 | |
| Hot water tank: Slot inner diameter 1000×1000×1000 1: It is made of 15mm A grade PP board, with PP V seat 2: The tank body is reinforced with 40×80×3mm square steel for 2 times 3: Equipped with heating tube 4: Equipped with temperature control cabinet | 1 | |

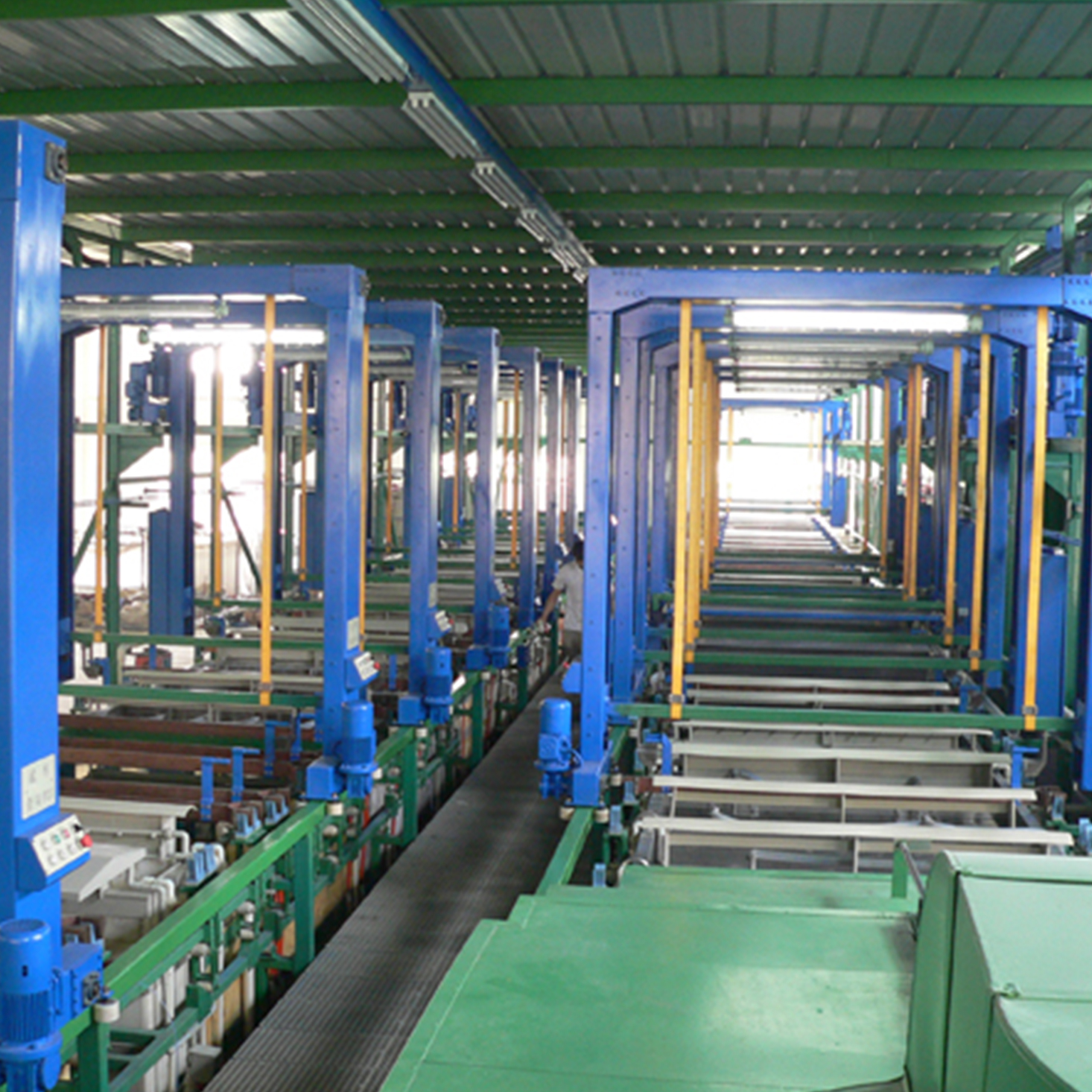

| Gantry crane: the size is matched with the drum line 1: It is made of 3mm steel plate, welded by bending, and equipped with 1.1kw motor/70 reducer | 2 | |
| Integral drainage pipe/water supply pipe/ 1: The drainage pipe adopts 40-diameter PVC pipe and valve fittings 2: The water supply adopts PVC pipes and valve fittings with diameters of 32 and 25 3: Installed in place | 1 | |
| Rectifier: 2000A 12V For electroplating bath | 2 | |
| Spin dryer: 1: Model 800 2: Purpose: to get rid of excess water in the product and make the product dry quickly | 1 | |
| Refrigerator: 16 hp direct cooling | 1 | |
| Filter: 15 tons Purpose: filter impurities in electroplating bath | 2 | |
| Copper bar Purpose: For rectifier connection Pure copper row 80×8mm | 1 | |
| Gantry crane flat wire: 1 square 3 core | 25m | |
| Flat line slide | 20m | |
| Hanging wheel: For clamping flat wire | 10 | |
| Slide rail bracket: Made of 40×40×3mm square steel | 1 | |
| Overall equipment distribution box: Power 30KW | 1 | |
| Cable: 1 to 4 square | ||
Electric galvanized coating machine
