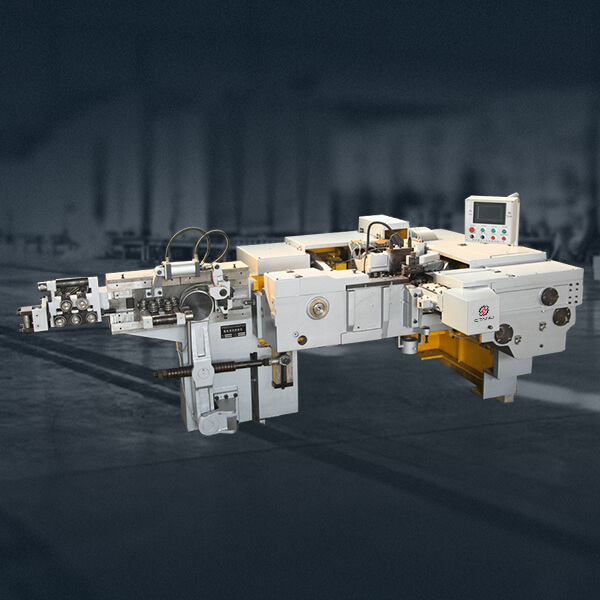

| The auto chain bending machine technical parameters | ||||||
| No. | Type | DLB-7 | DLB-11 | DLB-16 | DLB-18 | DLB-22 |
| 1 | Dlameter | Φ3-Φ7 | Φ6-Φ11 | Φ10-Φ16 | Φ12-Φ19 | Φ16-Φ22 |
| Recommend | Φ3-Φ6 | Φ7-Φ10 | Φ10-Φ14 | Φ14-Φ18 | Φ18-Φ22 | |
| 2 | Pitch | 12-42(mm) | 18-65(mm) | 33-80(mm) | 36- 108(mm ) | 51-130(mm) |
| 5 | Efficiency | 35- 80ring/min | 35-50ring/min | 20- 40ring/min | 20- 35ring/min | 15 -25ring/min |
| 6 | Total power | 4.5KW | 8KW | 19KW | 22.5KW | 30.5KW |
| 7 | Motor rating [380V 50-60HZ) | 4KW | 7.5KW | 18.5KW | 22KW | 30KW |
| 8 | Reted speed | 1450rpm | 1400rpm | 960rpm | 960rpm | 960rpm |
| 9 | Conrtoller | PLC(Mitsubishi) | PLC(Mitsubishi) | PLC(Mitsubishi) | PLC(Mitsubishi) | PLC(Mitsubishi) |
| 10 | Air pressure | ≥0.65(Mpa) | ≥0.65(Mpa) | ≥0.65(Mpa) | ≥0.65(Mpa) | ≥0.65(Mpa) |
| 11 | Air consumption | 1.8L/ring | 2. 25L/ring | 3L/ring | 3.5L/ring | 3.5L/ring |
| 12 | Size | 2600*1350*1600 | 3700*2100*1800 | 4500*2400*1800 | 4800*2940*2100 | 5000*3000*2100 |
| 13 | Weight | ≈1.7T | ≈4.2T | ≈6.8T | ≈8.8T | ≈11.4T |
G80 bending machine
G30 Bending machine
