Chain calibration machine
200T test machine details
200T test machine details

200T test machine details

no

NAME

details

unit

1

Maximum tensile load

2000

kN

2

Minimum loading length

350

mm

3

Drawing stroke

0~800

mm

4

Main drive cylinder

Φ250×800×2

mm

5

Applicable link diameter

Φ22~Φ34

mm

6

Repeated positioning accuracy

0.1

mm

7

The production efficiency

5~6

time/min

8

Rated pressure of hydraulic system

25

MPa

9

Motor power of hydraulic pump station

22

kw

10

weight

6200

kg

11

Machine size

(L*W*H)

5500×1600×2000

mm


Product Parameters:

DLT200 TEST MACHINE DETAILS

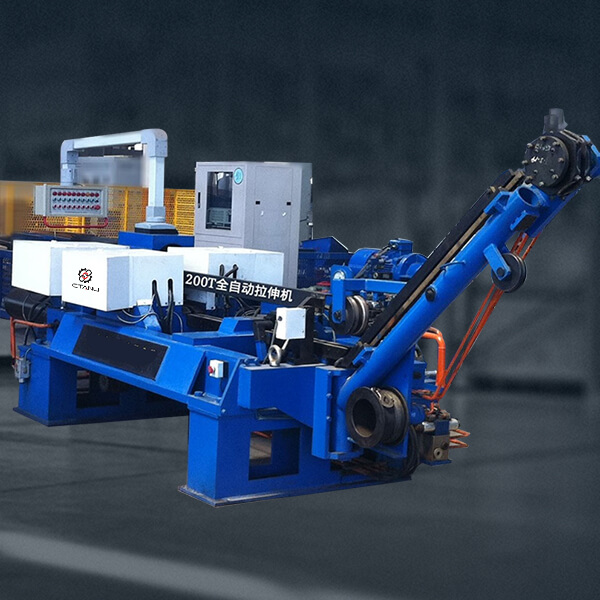

一、DLT-2000 automatic chain correction stretching machine for the full hydraulic transmission of chain automatic transmission, automatic stretching of special equipment, suitable for Φ 22-A 34 mining chain, lifting chain stretching and correction process.

This machine from the overall structure of the optimization design, the control system is developed by our company. Special control software makes the operation of the equipment more convenient. The human-machine interface visually displays the displacement and tension values in the stretching process, and the setting of process parameters is very convenient. The working state of each part of the equipment is displayed on the interface, and the prompt of failure facilitates the use of the operator and provides strong support for the maintenance of the equipment.
