DLX

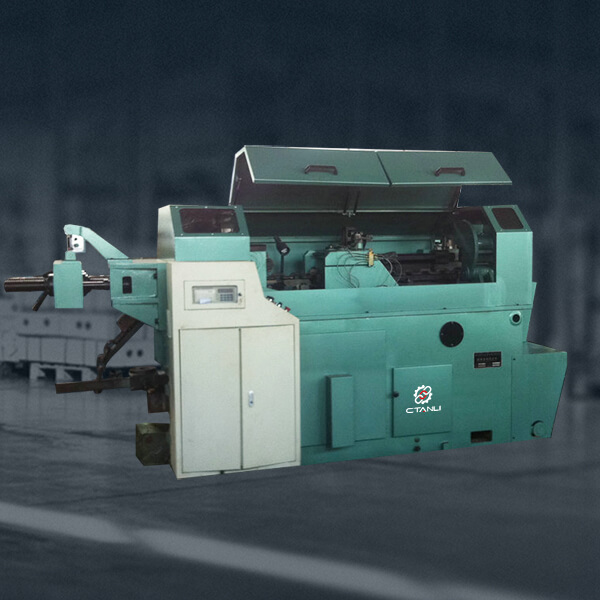

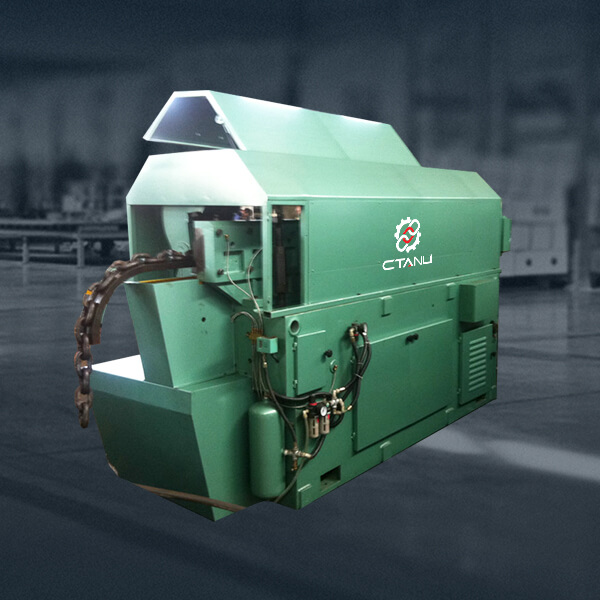

The auto chain correction machine technical parameters
No.	Type	DLX-50T	DLX-2OT	DLX-08T
1	The maxdimum tensile force	500KN	200KN	80KN
2	Chain diameter	13-22mm	7-13mm	3- 7mm
3	Chain width	90mm	65mm	26mm
4	Traction stroke	5-30mm	3-20mm	2-15mm
5	Chain test length	150-500mm	100- 400mm	80-200mm
6	Motor power	11KW	7. 5KW	4.0KW
7	Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
8	Weigth	6.8T	3.8T	1.8T
9	Size	380016001700	320014001500	23008001800
Note: The above datafor reference only please prevall in kind

Product Parameters:

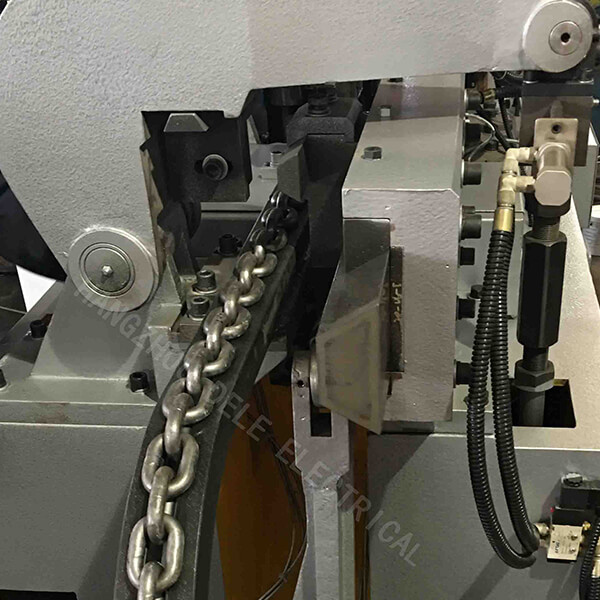

Designed for adjusting chain links after being heat treated ,round steel chains are automatically set with a given testing force or to a given lngth while being calibrated and tested.
