650 test machine details

DLT650 TEST MACHINE DETAILS

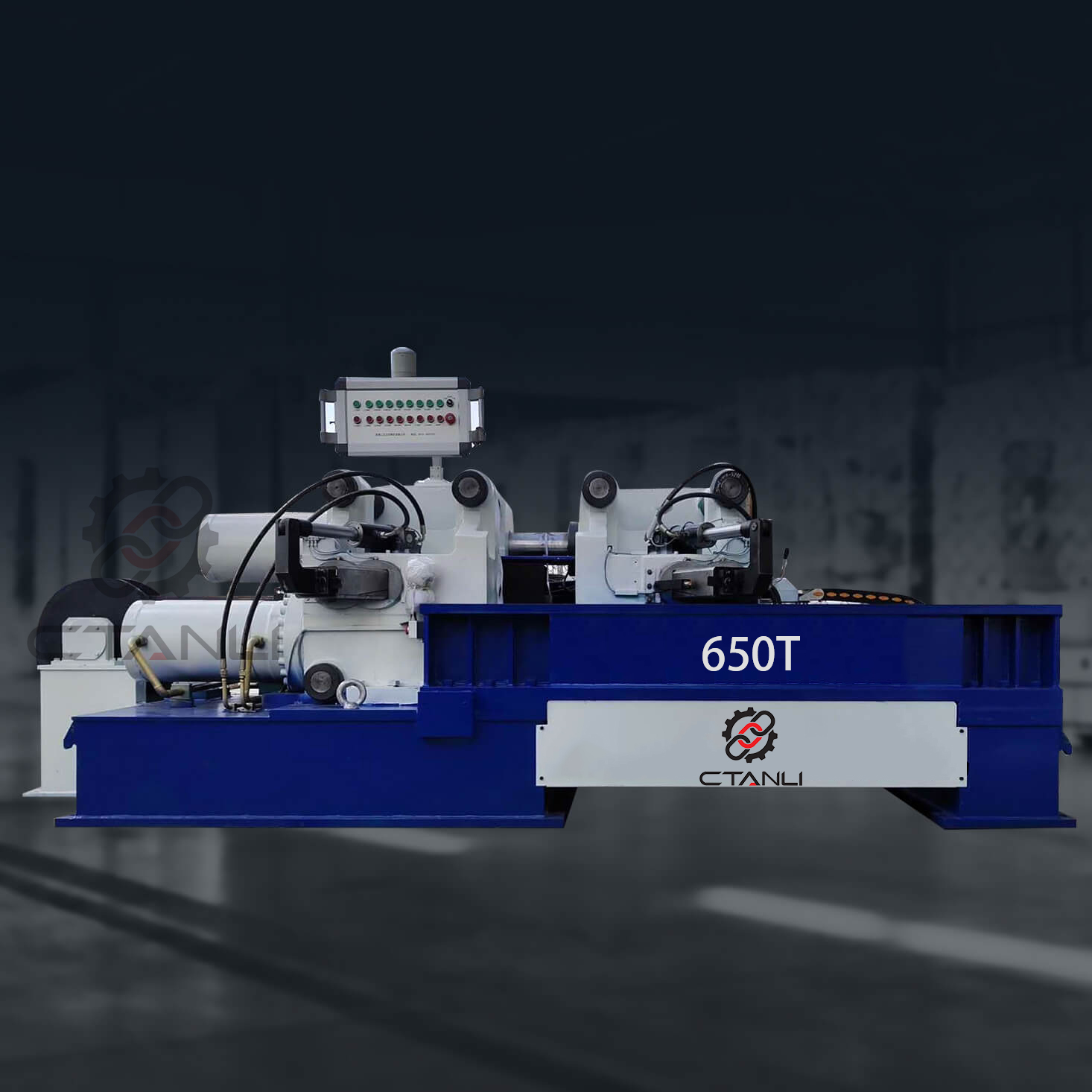

DLT-650 automatic chain correction and stretching machine for the full hydraulic transmission of chain automatic transmission, automatic stretching special equipment, suitable for Φ 48- Φ60 mining chain stretching and correction process.

This machine from the overall structure of the optimization design, the control system is developed by our company. Special control software makes the operation of the equipment more convenient. The human-machine interface visually displays the displacement and tension values in the stretching process, and the setting of process parameters is very convenient. The working state of each part of the equipment is displayed on the interface, and the prompt of failure facilitates the use of the operator and provides strong support for the maintenance of the equipment.

Product Parameters:

DETAILS

NO	NAME	details	Unit
1.	Maximum tensile load	6500	kN
2.	Minimum loading length	350	mm
3.	Drawing stroke	0~800	mm
4.	Main drive cylinder	Φ420*400	mm
5.	Applicable link diameter	Φ48--Φ60	mm
6.	Repeated positioning accuracy	0.1	mm
7.	The production efficiency	3~5	time/min
8.	Rated pressure of hydraulic system	25	MPa
9.	Motor power of hydraulic pump station	37	kw
10.	Machine sixe （LWJ）	7500X2400X1800	mm
	The weight of the drawing machine (including the main machine, hydraulic pump station, electric control cabinet, pipes, fixtures, protective cover, etc.) is about 32,000 kg
